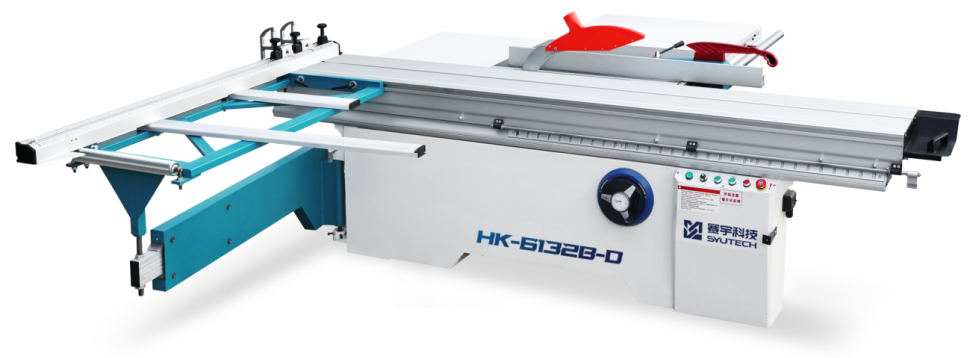

HK-6132B-D 數控推臺鋸
Sliding Table Panel Saw
45°精密推臺，精密鋸切不跑偏！
多功能推臺鋸，純銅電機，大歐靠尺，電動升降
45°precision sliding table,precision sawing without deviation!
Multifunctional sliding table saw,pure copper motor,large European guiding rule,electric lifting
?
技術參數
| 型號? | Model? ? | HK-6132B-D |
| 主鋸軸轉速? | Main saw?shaft speed? ? |
4000/5000r/min |
| 槽鋸軸轉速? ?? | Scoring saw?shaft speed |
9000r/min |
| 最大加工厚度 | Maximum machinin?thickness |
80mm |
| 主鋸片軸直徑? ? ? ? | Diameter of saw | 中300*中30mm |
| 滑動工作臺最大行程? ? | Maximum working lenght | 2800mm可定做 |
| 推臺寬度? ? ? ? ? ? | Pusher width | 390mm |
| 鋸片可傾斜角度? | Saw blade tilting | 45°-90° |
| 主鋸電機? ?? | Main saw motor | 5.5kw |
| 槽鋸電機? ? | Scoring saw motor | 1.1kw |
| 槽鋸片尺寸? ? | Diameter of scoring saw | 120*20mm |
| 重量? ? ? | Weight | 約850kg |
| 外形尺寸? ? ?? | Overall dimensions | 2960*3500*1000mm |
